FISHERPLOW

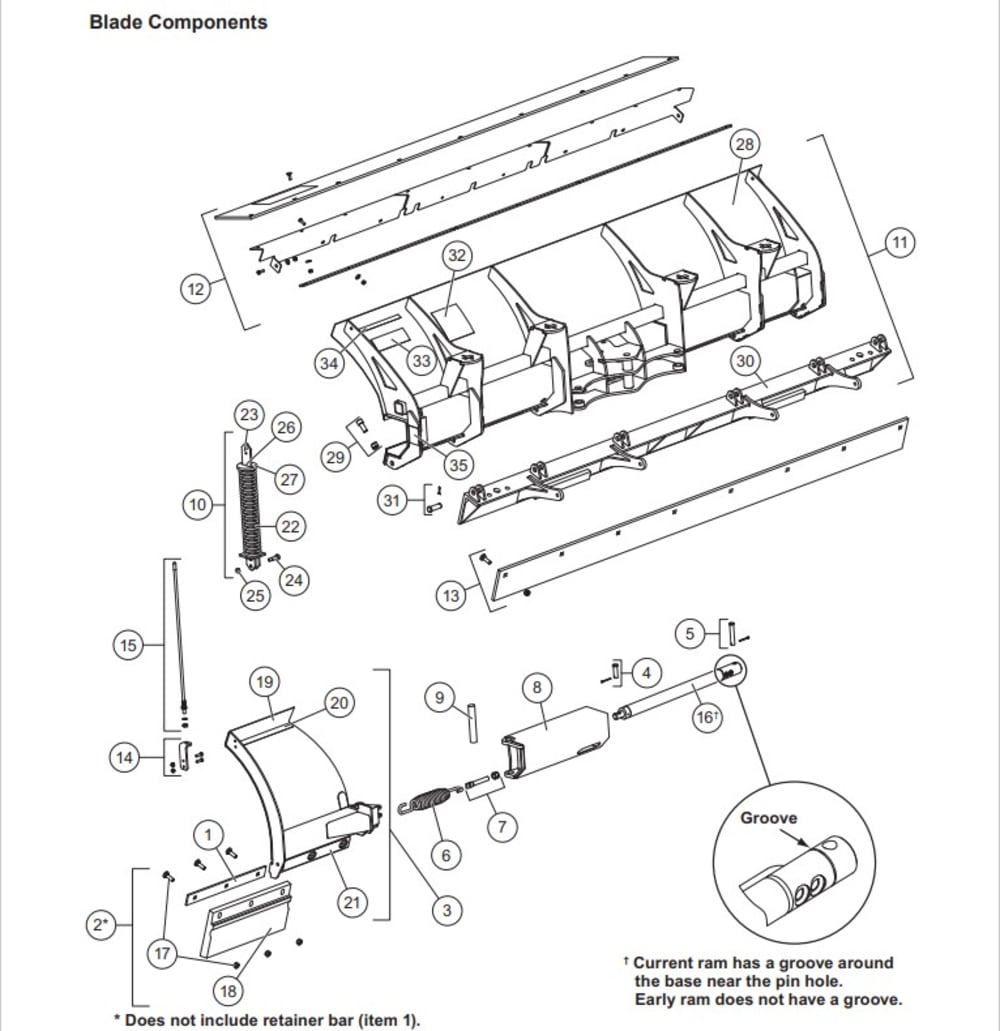

PRODUCT: WINGED BLADE , XLS

SECTION:

Item	Part	Description	Sugg Qty
50810 XLSTM Blade
1	50643	RETAINER BAR	2
2	50626	POLY WING CUTTING EDGE	1
3	50647	DS BLADE WING, XLS	1
4	50651	PIN KIT, 5/8" X 2"	2
5	50653	PIN KIT, 5/8" X 3-1/2"	2
6	50654	WING SPRING	2
7	50655	EYEBOLT KIT	2
8	50656	DS BLADE SLIDEBOX, XLS	1
9	50660	WING PIN	2
10	50665	KIT, SPRING ASSEMBLY	4
11	50666	XLS BLADE	1
12	50628-1	10" Rubber Deflector (8'-10' XLS)	1
13	50678	1/2" Steel Cutting Edge (7'6" HT Series/HD2/8'-10' XLS) - Accessory	1
14	50646	KIT, BLADE GUIDE BRACKET	1
15	27195	FLEXIBLE BLADE GUIDE KIT - 26"	1
16	77476	RAM ASSY 1-1/2 X 13-15/16 DA F	2
ns	50648	PS BLADE WING, XLS	1
ns	50657	PS BLADE SLIDEBOX, XLS	1
ns	B60373	COMBO SEAL KIT,CYLINDER B60347	2
ns	43794	SEAL KIT, RAM ASSY 43803	2
50626 Urethane Edge Assembly Kit
17	50642	BOLT KIT, URETHANE EDGE	2
18	50645	URETHANE EDGE	2
50647 DS Blade Wing, XLS
20	50639	WEAR STRIP - WING TOP	1
21	50638	WEAR STRIP	1
ns	29639	L XLS WING (LEGACY)	1
50648 PS Blade Wing, XLS
20	50639	WEAR STRIP - WING TOP	1
21	50638	WEAR STRIP	1
ns	29639	L XLS WING (LEGACY)	1
50665 Spring Assembly Kit
22	50663	TRIP SPRING	1
23	50664	SPRING BAR	1
24	91000	SH BOLT HX 1/2X1-5/8 (7/16-14)	1
25	90353	HEXLOCKNUT_7/16-14 GB	1
26	20181	PIN - 1/4" X 1-1/4"	1
27	20191	DISC, SPRING, UNCOATED	1
50666 XLS Blade Assembly
29	50661	STOP BOLT KIT	2
30	50662	BASE ANGLE	1
31	84844	3/4 X 2-3/16 PIN KIT	6
34	50604	LABEL - 8'-10' XLS	1
35	32593EN	32593EN	2
ns	20238	L FISHER LOGO MD	1
ns	29535	L XLS LOGO (LEGACY)	1
