FISHERPLOW

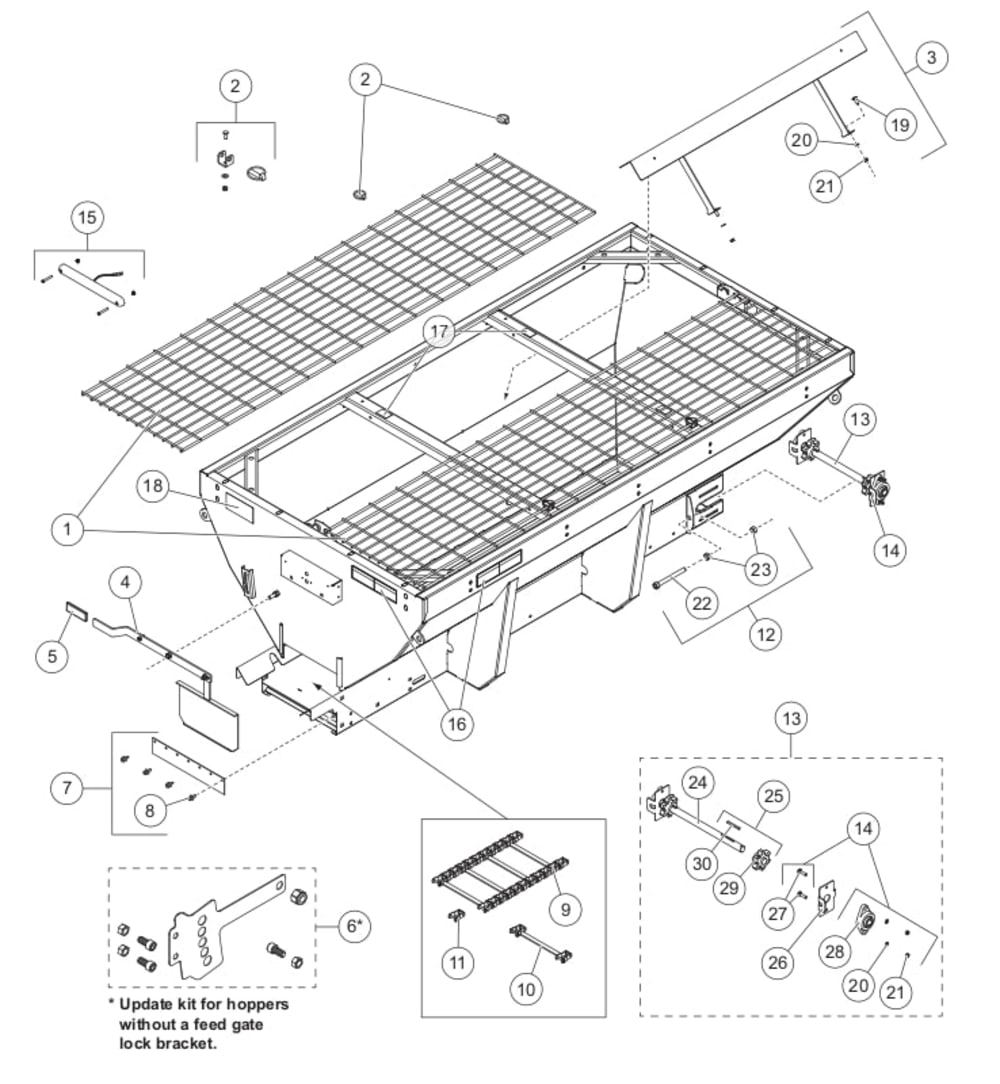

PRODUCT: HOPPER , STEEL-CASTER ( 1.5 & 6.0 cu yd )

SECTION:

Item	Part	Description	Sugg Qty
Hopper Components Harnesses
1	99516	TOP SCREEN 8FT NARROW PAINTED	2
1	99517	TOP SCREEN 9FT NARROW PAINTED	2
1	99518	TOP SCREEN 9FT WIDE PAINTED	2
1	99519	TOP SCREEN 10FT WIDE PAINTED	2
2	99578	SCREEN ATTACHMENT KIT	1
3	99482	INVERTED VEE KIT, SHORT SH	1
3	99119	INVERTED VEE KIT, LARGE SH	1
4	99083	FEEDGATE KIT, SH	1
5	90817	GRIP, FEEGATE HANDLE, SH	1
6	90952	FEED GATE UPGRADE KIT	1
7	78266	CHAIN WIPER KIT	1
8	99079	RIVET KIT, SH WIPER KIT	1
9	68474	CONVEYOR CHAIN 123 LINK/204.7"	1
9	94898	CONVEYOR CHAIN 108 LINK/179.7"	1
10	68492	CONVEYOR REPAIR BAR HC	1
11	68475	PINTLE CHAIN REPAIR LINK WITH	1
12	99073	TENSIONER BOLT KIT	2
13	99480	IDLER SHAFT ASSEMBLY KIT	1
14	94953	SPREADER BEARING KIT	2
15	99080	CHMSL KIT	1
16	31594EN	31594EN	2
17	67272	LABEL-INFORMATION (CAUTION)	4
ns	68790	Ratchet Tie-Down Kit – POLY-CASTER/STEEL-CASTER	1
ns	99736	HARNESS ASSEMBLY, CHMSL/PL	1
ns	99688	HARNESS ASSEMBLY, CHMSL/PL VEH	1
99480 Idler Shaft Assembly Kit
14	94953	SPREADER BEARING KIT	1
24	94351	IDLER SHAFT	1
25	99479	SPROCKET KIT	2
26	99765	BEARING ALIGNMENT PLATE	2
94953 Spreader Bearing Kit
28	94536	BEARING, 1.125 ID 2-BOLT FLG	1
99479 6-Tooth Sprocket
30	95076	KEY, 2.75 in, Brass	1
Label - Logo, STEEL-CASTER 8'(2.0 yd³)
-	96992	L STEEL-CASTER SM HOPPER SIDE	2
Label - Logo, STEEL-CASTER 9' (3.0 yd 3 )
-	96994	L STEEL-CASTER LG HOPPER SIDE	2
Label - Logo, STEEL-CASTER 9'(4.5 yd³)
-	96992	L STEEL-CASTER SM HOPPER SIDE	2
Label - Logo, STEEL-CASTER 10' (4.5 yd 3 )
-	96992	L STEEL-CASTER SM HOPPER SIDE	2
Label - Logo, STEEL-CASTER 10'(6.0 yd³)
-	96994	L STEEL-CASTER LG HOPPER SIDE	2
